$7,489.00
Our heaviest duty model, the 75006PR, develops 34.1 tons pressure and will produce round holes up to a maximum of 15/16″ diameter and punch through a maximum thickness of 1/2″ material in approximately 4 seconds. It has eyebolts on both sides for easy attachment of a lift assist or a counter-balancer for improved ergonomics. Like all Punch-Pro models, its single body design makes it easy to use anywhere. Easily confirm the hole position with the jog down feature. Punch automatically returns to the starting position after the punching cycle is complete. Work stand, foot switch, 13/16″ punch & (2) dies and tool kit are included.
| 75006 SPECIFICATIONS | |||
| Pressure (Tons) | 26.9 | ||
| Approximate Punching Speed | 4 seconds | ||
| Maximum Hole Size – Round | 15/16″ – (23.8mm) | ||
| Maximum Thickness – Round | 1/2″ – (12.7mm) | ||
| Maximum Hole Size – Oblong | 11/16″ x 13/16″ (18mm x 21mm) |
||
| Maximum Thickness – Oblong | 1/2″ – (12.7mm) | ||
| 115V/50-60Hz AC | 13 Amps / 1460 Watts | ||
| 230V/50-60Hz AC | 8 Amps / 1460 Watts | ||
| Weight (less work stand) | 62.9 lbs – (28.5 kg) | ||
| Shipping Weight (approx) | 82.6 lbs – (37.5 kg) | ||
| Weight | 92 lbs |
|---|---|
| Dimensions | 17.75 × 10 × 26.25 in |
| Punch-Pro Model | 75006PR |
| 75006PR ROUND/OBLONG PUNCHES | |||
| Have a Question? Give Us a Call – 1 (855) 427-3899 | |||
|
|||

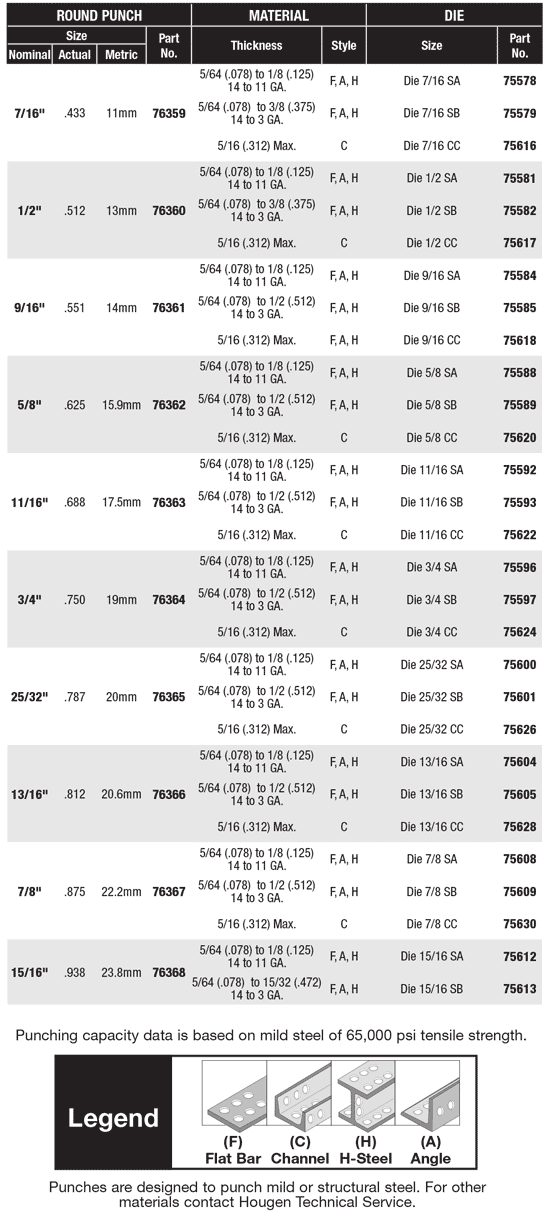

75006PR Round Punches
75006PR Oblong Punches
|
