HMD920

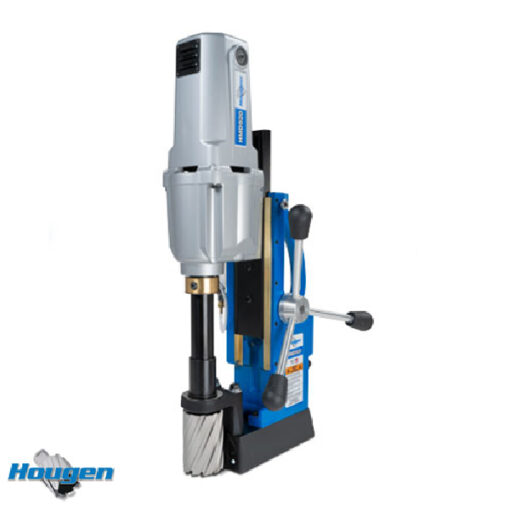

HMD920CS – COOLANT TANK & SWIVEL

$2,799.00

  • Max Depth: 3″ (76mm)
  • Max Diameter: 2 3/8″ (60mm)

• Large 2-3/8″ x 3″ capacity
• Our most powerful high torque motor
• Three speed gear box – 250 / 450 / 700 RPM
• Pilot light
• Two stage magnet – 30% increase in power when
motor is turned on
• Positive slug ejection
• Gravity fed coolant bottle
• Many accessories are available for a
portable machine shop including: drill
chucks, tapping, countersink, and more…
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear mounted controls
• Two year warranty

Swivel Base adds even greater versatility:
• Precisely line up your pilot with the holes
center location
• One stroke lock and unlock handle
• Great for horizontal, overhead, tight areas,
and getting out over another piece of steel
• Patented

The HMD920 replaces the HMD917

SKU: HMD920CS Categories: , ,

Description

HMD920CS SPECIFICATIONS
Electrical System 115V, 50/60 Hz – 13.5A, 1553W
Motor 12.5A (115V),  250/450/700 RPM
Diameter 7/16″- 2-3/8″ (12mm – 60mm)
Depth 3″ (76mm)
Cutter/Mount “12,000-Series” & Copperhead™ Carbide cutters, 3/4″ shank
Dimensions 25-15/16″ H x 8-3/16″ W x 12-13/16″ L
(659mm H x 208mm W x 325mm L)
Swivel Area 1-1/8″ W x 1-3/8″ L
(28.5mm W x 34.9mm L)
Magnet Base 3-1/2″ W x 7-3/4″ L (89mm W x 197mm L)
1″ Plate (25mm) Dead Lift
2385 lb. (1082 kg)		 Drillpoint Breakaway
1290 lb. (585 kg)
3/8″ Plate (9.5mm) 1635 lb. (742 kg) 825 lb. (374 kg)
Swivel Magnet 1″ Plate (25mm) Dead Lift
2480 lb. (1125 kg)		 Drillpoint Breakaway Forward – 1043 lb. (473 kg)
Back – 1218 lb. (552 kg)
3/8″ Plate (9.5mm) 1782 lb. (808 kg) Forward – 796 lb. (361kg)
Back – 1067 lb. (484 kg)
Net Weight 49 lb. (22.2 kg)
Weight 53 lb. (24.1 kg) • Shipping 70 lb (31.8 kg)
Need annular cutters for this mag drill? Click here to view!

Need annular cutters for this mag drill? Click here to view

Additional information

Weight 43 lbs
Dimensions 11.625 × 7.75 × 19.625 in
Max Depth

Mag Drill Model

HMD920C
Mag Drill Brands

Hougen Mag Drills

Models
HMD920CS Models & Part No.
* All drills include: carrying case, pint of coolant, safety chain, & hex wrenches.

** ** Fabricator’s Kit also includes: 1/2″ Drill Chuck, adapter, & “12,000-Series” Cutter Kit
Part No. Description Voltage Coolant Bottle Swivel Cutter Kit
HMD920C HMD920 115V X X
HMD920CS HMD920 115V X X
HMD920C-F HMD920 + Fab Kit 115V X 12002
HMD920SC-F HMD920 + Fab Kit 115V X X 12002

Cutters

HMD920CS ANNULAR CUTTERS


Want to see all of our annular cutters? Click here to view!

Accessories

HMD920CS ACCESSORIES
Drill Chucks
Easily use twist drills with an HMD920. Drill chucks are quickly installed in place of the arbor. Spindle adapters are required to use a drill chuck.
Part No. Description
10731 1/2″ Hougen Chuck with key
10732 1/2″ Jacobs Chuck with key
10737 5/8″ Hougen Chuck with key
10738 5/8″ Jacobs Chuck with key
07930 Replacement key for 1/2″ chucks
07931 Replacement key for 5/8″ chucks
08190 Spindle Adapter for HMD920

New Slot Drive Arbor Systems
Twist Drill Adapter
Easily installs in a Hougen Magnetic Drill* without removing drill arbor and coolant system. Adapter accepts a modified 118° twist drill with a 1/4″ flatted shank that secures in adapter with a set screw. A convenient kit is available containing all items listed below.
Part No. Description
02608 Twist Drill Adapter with Set Screw
02695 Set Screw for Adapter
03835 1/2″ dia. Twist Drill
03837 7/16″ dia. Twist Drill
03839 3/8″ dia. Twist Drill
03841 5/16″ dia. Twist Drill
03843 1/4″ dia. Twist Drill
03845 Twist Drill Adapter Kit

Twist Drill Adapter Kit for Mag Drills
#2 Morse Taper Adapter
#2 Morse Taper Adapter easily fits on the HMD920 to accept morse taper shank twist drills or reamers. Will work with up to 7/8″ dia twist drills or reamers with a max length of 10.25″.

    • Part No.

07448

Tapping Kits
Lightweight, easy to install design incorporates a planetary gear reverse with a 1:1 ratio. Reversing speed is equal to spindle speed so in-feed and out-feed of the unit can be employed without reversing motor direction. Tapping Kits are not recommended for use with swivel base drills.
Tapping Kit Collet Tap Cap. inches
08180(Slot Drive – includes adapter 08179) 10807
10808		 #10 – 1/2″
1/2″ – 5/8″

Tap a Hole in Seconds with a Hougen Magnetic Drill
Countersink Kit
Designed for use with Hougen Magnetic Drills, 82° Countersink is double fluted with carbide inserts for maximum cutting action and long life. For holes from 9/16″ to 15/16″ diameters
Part No. Description
12965 82° Countersink Kit includes countersink with inserts & (4) Pilots – 9/16, 11/16, 13/16 & 15/16″ plus a torx wrench
12966 82° Countersink with Carbide Inserts (Does not include pilots)
12960 9/16″ diameter Pilot
12961 11/16″ diameter Pilot
12962 13/16″ diameter Pilot
12963 15/16″ diameter Pilot
05464
 Replacement Screw
05465
 Replacement Wrench
05467 Replacement Carbide Inserts (Box of 10)
Use for mild steel, cast steel & malleable iron
05779 Replacement Carbide Inserts Wear Resistant (Box of 10) Use for structural steel, stainless steel, harder steels & non-ferrous materials
Pipe Adapter Kits
These kits let you drill pipe and tubing with a minimum 3″ diameter and some convex surfaces. Kits quickly attach to your Hougen Magnetic Drill and positive non-slip positioning assures centered hole location.
Part No. Description
02564* Chain mount for model HMD920
* Minimum 3″ diameter schedule 160, maximum 12″ diameter schedule 160 *
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ Super Concentrated Cutting Fluid is water soluble, biodegradable cutting lubricant that yields a 10:1 ratio when mixed with water. RotaMagic extends tool life and improves cutter performance.
Part No. Description
11741* 1 Pint Bottle
11742* 1 Gallon Bottle
11743 (1) 5 Gallon Pail, makes 55 gallons
11744 (1) 55 Gallon Drum, makes a lot of coolant!
* Individual Products Not for Distributor Purchase *
For SDS Information please click here
RotaGel™ Cutting Lube
RotaGel Cutting Lube is an extremely environmentally friendly lubricant for all types of metals and metal working applications. The blue colored gel assures thorough coverage and provides long lasting superior lubrication. Use with annular cutters, taps, drills, reamers, end mills, & more.
Part No. Description
11748* Single 8oz Tube
* Individual Tube Not for Distributor Purchase *
RotaFoam™ Cutting Fluid
RotaFoam Cutting Fluid is an extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications. “Super Sticky” properties make the foam adhere to the metal and stay on longer. The blue colored foam allows you to “See Where You Spray” and also assures thorough coverage. Use with annular cutters, taps, drills, reamers, end mills, & more (Only Available in the US & Canada)
Part No. Description
11747* Single 17oz Can
* Individual Can Not for Distributor Purchase *
Slick-Stik™ Lube
Slick-Stik™Lubricant is softer than other stick lubricants for easy application, providing superior adhesion to the tool, assuring thorough coverage. Use with ferrous and non-ferrous materials. Can be used with all Hougen cutters.
Part No. Description
11745 16 oz. Slick-Stik™ Lubricant
11746 1.68 oz. Mini Slick-Stik™ Lubricant
For SDS Information please click here
