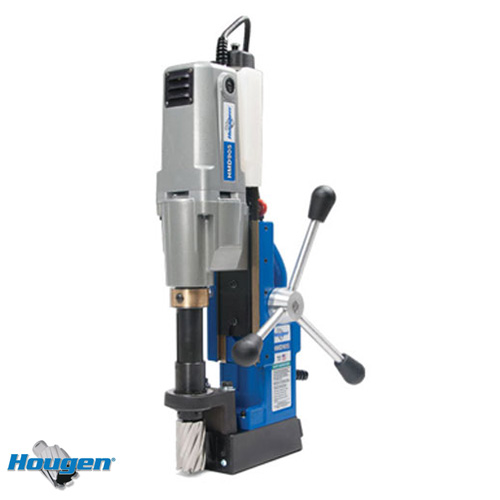

• Large 2″ x 2″ capacity
• Powerful high torque Hougen motor and gears
• Two Speed gear box – 250 & 450 RPM
• Pilot light – for low light or no light conditions
• Two stage magnet – 30% increase in power when
motor is turned on
• Positive slug ejection
• Integrated coolant bottle
• Many accessories are available for a
portable machine shop including: drill
chucks, tapping, countersink, and more…
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear mounted controls
• Carrying case included
• One year warranty
• Hougen Part Number 0905102
Spindle Adapter for HMD905 with Slot Drive Arbor (Drill w/ Pilot Light)
New Slot Drive Arbor Systems
Twist Drill Adapter
Easily installs in a Hougen Magnetic Drill* without removing drill arbor and coolant system. Adapter accepts a modified 118° twist drill with a 1/4″ flatted shank that secures in adapter with a set screw. A convenient kit is available containing all items listed below.
Lightweight, easy to install design incorporates a planetary gear reverse with a 1:1 ratio. Reversing speed is equal to spindle speed so in-feed and out-feed of the unit can be employed without reversing motor direction. Tapping Kits are not recommended for use with swivel base drills.
Tap a Hole in Seconds with a Hougen Magnetic Drill
Countersink Kit
Designed for use with Hougen Magnetic Drills, 82° Countersink is double fluted with carbide inserts for maximum cutting action and long life. For holes from 9/16″ to 15/16″ diameters
Replacement Carbide Inserts Wear Resistant (Box of 10) Use for structural steel, stainless steel, harder steels & non-ferrous materials
Pipe Adapter Kits
These kits let you drill pipe and tubing with a minimum 3″ diameter and some convex surfaces. Kits quickly attach to your Hougen Magnetic Drill and positive non-slip positioning assures centered hole location.
With the feed handles of the HMD905 removed the Ratchet Drive is easily installed allowing use of a standard ratchet handle for drilling in confined areas. Ratchet Drive operates from either side of the drill.
Ratchet Drive for Model HMD905 Mag Drill, does not include Ratchet
Portable Vac-Pad
Vac-Pad uses hop air to aid in drilling holes on diamond plate and aluminum
Vac-Pad works exclusively with the Model HMD905 on non-ferrous materials, diamond plate and materials with surface imperfections up to 3mm deep. Standard shop air provides 761 lbf surface holding power at 85kpa. Safety switch shuts off drill motor if air pressure drops.
For HMD905 with taper back magnet and non-swivel base models only
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ Super Concentrated Cutting Fluid is water soluble, biodegradable cutting lubricant that yields a 10:1 ratio when mixed with water. RotaMagic extends tool life and improves cutter performance.
RotaGel Cutting Lube is an extremely environmentally friendly lubricant for all types of metals and metal working applications. The blue colored gel assures thorough coverage and provides long lasting superior lubrication. Use with annular cutters, taps, drills, reamers, end mills, & more.
RotaFoam Cutting Fluid is an extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications. “Super Sticky” properties make the foam adhere to the metal and stay on longer. The blue colored foam allows you to “See Where You Spray” and also assures thorough coverage. Use with annular cutters, taps, drills, reamers, end mills, & more (Only Available in the US & Canada)
Slick-Stik™Lubricant is softer than other stick lubricants for easy application, providing superior adhesion to the tool, assuring thorough coverage. Use with ferrous and non-ferrous materials. Can be used with all Hougen cutters.
